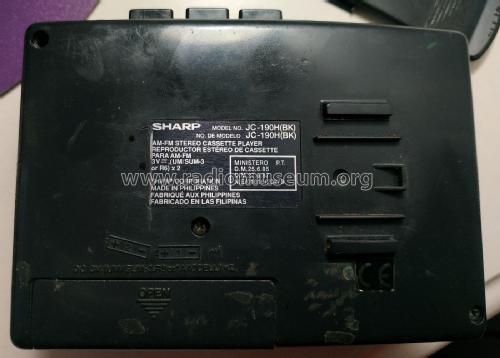

AM-FM Stereo Cassette Player JC-190H

Sharp; Osaka

  • Year
  • 1988 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 360751
    • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1.5 / 3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.04 W (0.06 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM-FM Stereo Cassette Player JC-190H - Sharp; Osaka
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 87 x 122.5 x 37.5 mm / 3.4 x 4.8 x 1.5 inch
  • Notes
  • Gewichtsangabe ohne Batterien, FM 87,5 - 108 MHz, AM 526,5 - 1606,5 kHz

  • Net weight (2.2 lb = 1 kg)
  • 0.180 kg / 0 lb 6.3 oz (0.396 lb)
