AM/FM Tuner ST-511H
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1972–1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220903
-
- alternative name: Hayakawa Electric Co.Ltd.

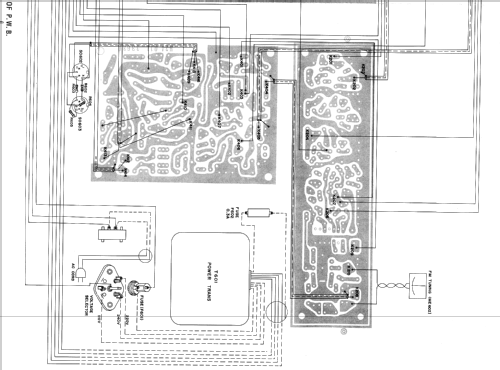

Bild aus Sharp Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM/FM Tuner ST-511H - Sharp; Osaka
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 360 x 130 x 240 mm / 14.2 x 5.1 x 9.4 inch
- Notes
-
2 Band Radio Tuner, mit FM Tuning Meter und Signal Meter.
Anschlüsse vollständig und ausschließlich nach DIN
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 550.00 DM
- Mentioned in
- Sharp Service Unterlagen
- Literature/Schematics (1)
- HiFi Jahrbücher 6 und 7
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
