ATR-923

ATR-923; Sharp; Osaka (ID = 313366) Car Radio

ATR-923; Sharp; Osaka (ID = 313369) Car Radio

ATR-923; Sharp; Osaka (ID = 313368) Car Radio

ATR-923; Sharp; Osaka (ID = 657166) Car Radio

ATR-923; Sharp; Osaka (ID = 657134) Car Radio

ATR-923; Sharp; Osaka (ID = 657145) Car Radio

ATR-923; Sharp; Osaka (ID = 657165) Car Radio
ATR-923; Sharp; Osaka (ID = 313371) Car Radio ATR-923; Sharp; Osaka (ID = 657171) Car Radio
Use red slider bar for more.
ATR-923; Sharp; Osaka (ID = 313371) Car Radio

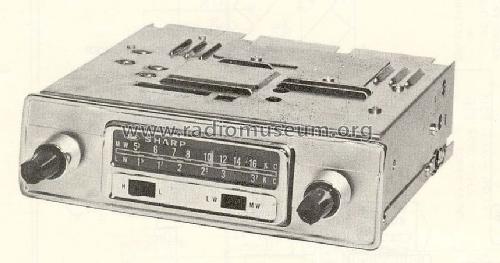

Sharp; Osaka: ATR-923 [Car Radio] ID = 313371 859x453
Select picture or schematic to display from thumbnails on the right and click for download.
For model ATR-923, Sharp; Osaka

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1965 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: 2SA355 2SA15 2SA12 2SA12 2SB75 2SB75 2SB368
Main principle Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: ATR-923 - Sharp; Osaka
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 50.8 x 127 x 140 mm / 2 x 5 x 5.5 inch
Net weight (2.2 lb = 1 kg) 1.298 kg / 2 lb 13.8 oz (2.86 lb)

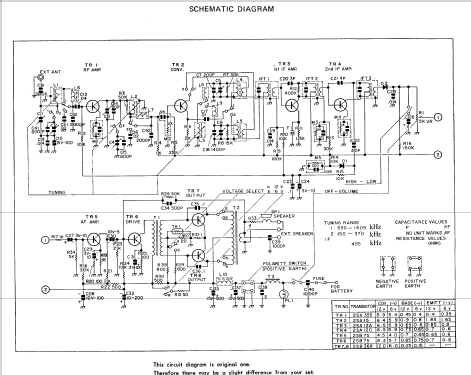

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
