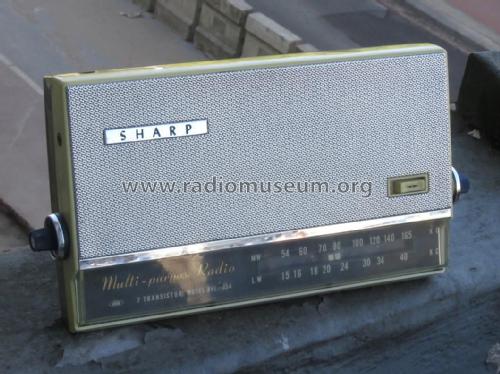

BHL-354

Sharp; Osaka

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99426
    • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 cm = 3.5 inch
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: BHL-354 - Sharp; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 155 x 65 mm / 11 x 6.1 x 2.6 inch
  • Notes
  • Sockets for external power 6v, phono input, & earphone. Model BHL-354A has an additional socket for external aerial.
  • Source of data
  • - - Data from my own collection
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Ervé Leclercq. See "Data change" for further contributors.
