BP-170

BP-170; Sharp; Osaka (ID = 1488976) Radio BP-170; Sharp; Osaka (ID = 1488978) Radio
BP-170; Sharp; Osaka (ID = 1488979) Radio BP-170; Sharp; Osaka (ID = 1488980) Radio
BP-170; Sharp; Osaka (ID = 1488981) Radio BP-170; Sharp; Osaka (ID = 2134063) Radio
BP-170; Sharp; Osaka (ID = 2134064) Radio BP-170; Sharp; Osaka (ID = 2134065) Radio
BP-170; Sharp; Osaka (ID = 848504) Radio BP-170; Sharp; Osaka (ID = 848505) Radio
Use red slider bar for more.
BP-170; Sharp; Osaka (ID = 1488976) Radio
Sharp; Osaka: BP-170 [Radio] ID = 1488976 933x1237
Select picture or schematic to display from thumbnails on the right and click for download.
For model BP-170, Sharp; Osaka:
Für Modell BP-170, Sharp; Osaka

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
schematic requested
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / AA: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: BP-170 - Sharp; Osaka
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 102 x 29 mm / 2.6 x 4 x 1.1 inch
Notes

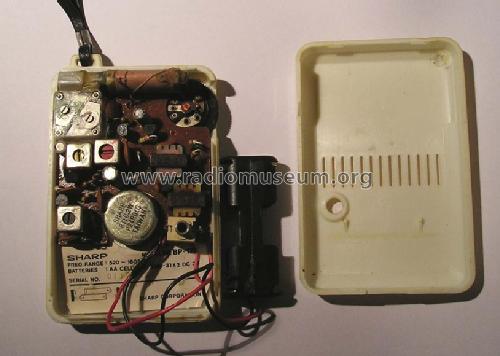

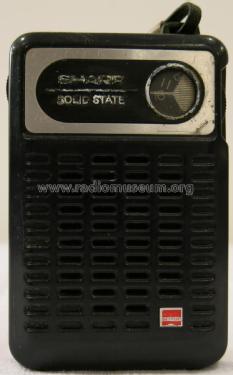

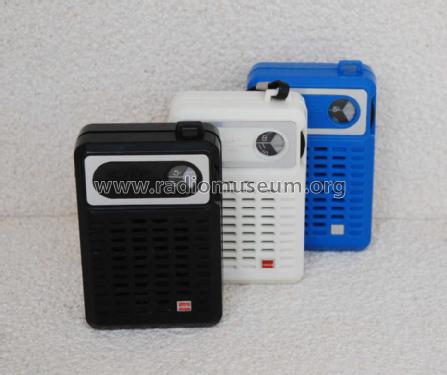

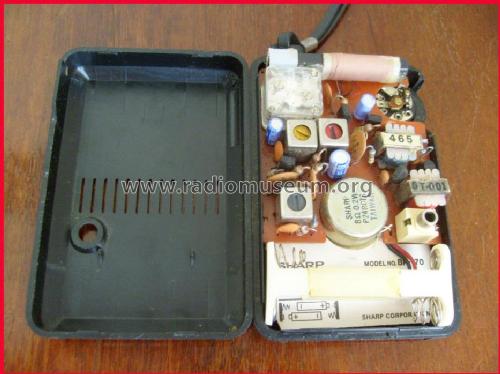

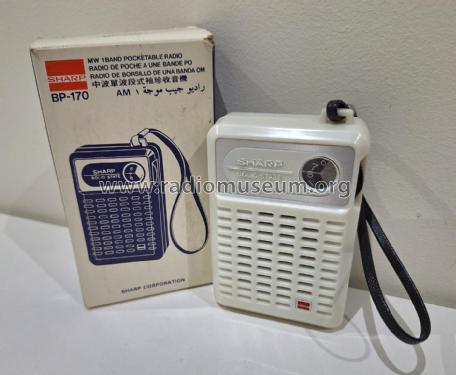

Sharp AM pocket radio BP-170, various cabinet colors known. Jack for earphone.
Tuning range: 520-1605 kHz.

Net weight (2.2 lb = 1 kg) 0.170 kg / 0 lb 6 oz (0.374 lb)

Model page created by Mario Coelho. See "Data change" for further contributors.
