BP-322
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 172447
-
- alternative name: Hayakawa Electric Co.Ltd.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: BP-322 - Sharp; Osaka
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 90 x 90 x 23 mm / 3.5 x 3.5 x 0.9 inch
- Notes

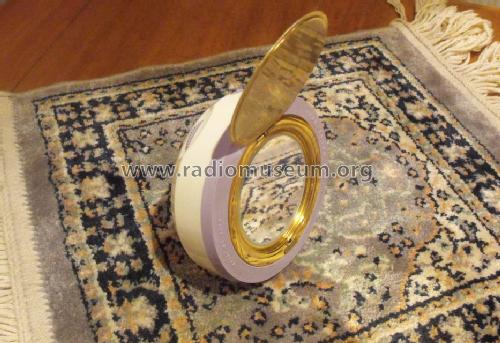

- Radio in the shape of round powder compact, with mirror inside the rear lid (radio thought for being carried in women bags).
Radio a forma circolare dotata di specchio posteriore apribile a scatto; a forma e dimensione simile ad un portacipria era destinata alle donne, da portare in borsa.
- Source of data
- - - Data from my own collection
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Giuseppe Duello. See "Data change" for further contributors.
