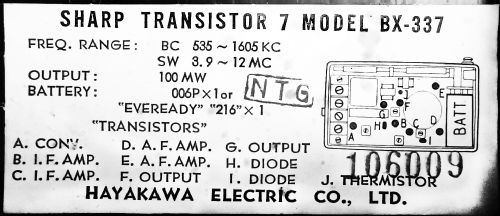

BX-337

BX-337; Sharp; Osaka (ID = 2556947) Radio
BX-337; Sharp; Osaka (ID = 2556945) Radio BX-337; Sharp; Osaka (ID = 2556946) Radio
Use red slider bar for more.
BX-337; Sharp; Osaka (ID = 2556945) Radio
Sharp; Osaka: BX-337 [Radio] ID = 2556945 1400x865
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX-337, Sharp; Osaka:
from my collection

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BX-337 - Sharp; Osaka
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 125 x 74 x 35 mm / 4.9 x 2.9 x 1.4 inch
Notes

SW 3.9-12 MHz

Model page created by Danilo Crnogorac. See "Data change" for further contributors.
