BX-392 (Japan 302)

BX-392 ; Sharp; Osaka (ID = 638993) Radio

BX-392 ; Sharp; Osaka (ID = 638994) Radio

BX-392 ; Sharp; Osaka (ID = 638995) Radio

BX-392 ; Sharp; Osaka (ID = 638996) Radio
BX-392 ; Sharp; Osaka (ID = 639000) Radio BX-392 ; Sharp; Osaka (ID = 1160246) Radio
BX-392 ; Sharp; Osaka (ID = 1160247) Radio BX-392 ; Sharp; Osaka (ID = 1160248) Radio
BX-392 ; Sharp; Osaka (ID = 1160249) Radio BX-392 ; Sharp; Osaka (ID = 1160250) Radio
BX-392 ; Sharp; Osaka (ID = 1660524) Radio BX-392 ; Sharp; Osaka (ID = 1660526) Radio
BX-392 ; Sharp; Osaka (ID = 1660529) Radio BX-392 ; Sharp; Osaka (ID = 2354774) Radio
Use red slider bar for more.
BX-392 ; Sharp; Osaka (ID = 639000) Radio
Sharp; Osaka: BX-392 [Radio] ID = 639000 662x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX-392 (Japan 302), Sharp; Osaka:
Manual Sharp

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA352 2SA12 2SA12 1N34A 2SB75 2SB75 2SB77 2SB77 2SB351
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.62 inch = 6.7 cm
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: BX-392 - Sharp; Osaka
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

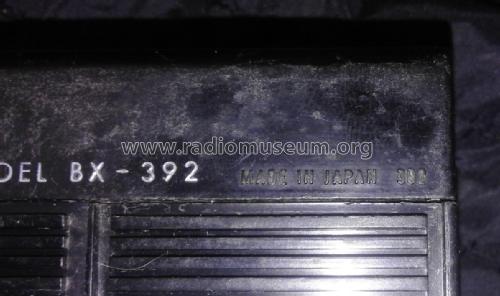

Made in Japan 302

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
