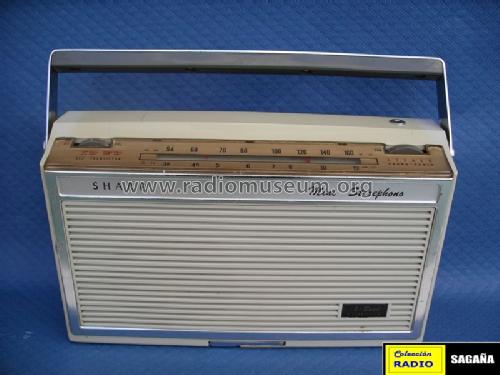

Mini Sterephono BXG-700

Mini Sterephono BXG-700; Sharp; Osaka (ID = 148314) Radio

Mini Sterephono BXG-700; Sharp; Osaka (ID = 148315) Radio

Mini Sterephono BXG-700; Sharp; Osaka (ID = 148313) Radio
Mini Sterephono BXG-700; Sharp; Osaka (ID = 436127) Radio Mini Sterephono BXG-700; Sharp; Osaka (ID = 148316) Radio
Mini Sterephono BXG-700; Sharp; Osaka (ID = 683207) Radio Mini Sterephono BXG-700; Sharp; Osaka (ID = 683209) Radio
Mini Sterephono BXG-700; Sharp; Osaka (ID = 683211) Radio Mini Sterephono BXG-700; Sharp; Osaka (ID = 823699) Radio
Mini Sterephono BXG-700; Sharp; Osaka (ID = 823700) Radio Mini Sterephono BXG-700; Sharp; Osaka (ID = 823702) Radio
Mini Sterephono BXG-700; Sharp; Osaka (ID = 823703) Radio Mini Sterephono BXG-700; Sharp; Osaka (ID = 823704) Radio
Use red slider bar for more.
Mini Sterephono BXG-700; Sharp; Osaka (ID = 436127) Radio
Sharp; Osaka: Mini Sterephono BXG-700 [Radio] ID = 436127 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini Sterephono BXG-700, Sharp; Osaka:
courtesy Paul Graf

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA350 2SA12 2SA12 2SB75 2SB77 2SB77 2SB156 2SB156
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (not changer)
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.33 W (unknown quality)
from Radiomuseum.org Model: Mini Sterephono BXG-700 - Sharp; Osaka
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 145 x 70 mm / 9.8 x 5.7 x 2.8 inch

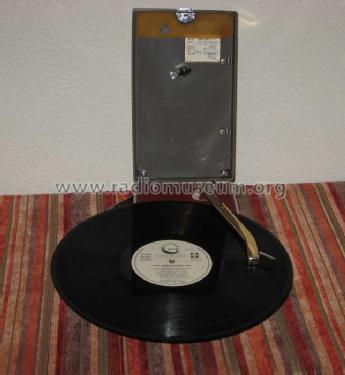

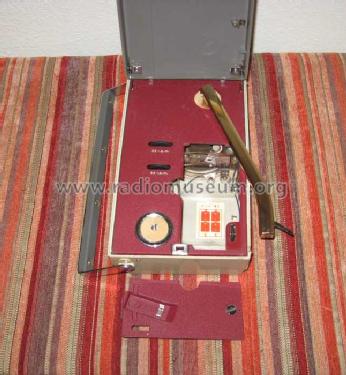

Notes Rückseite Plattenspieler mit 2 Geschwindigkeiten.
Net weight (2.2 lb = 1 kg) 1.561 kg / 3 lb 7 oz (3.437 lb)

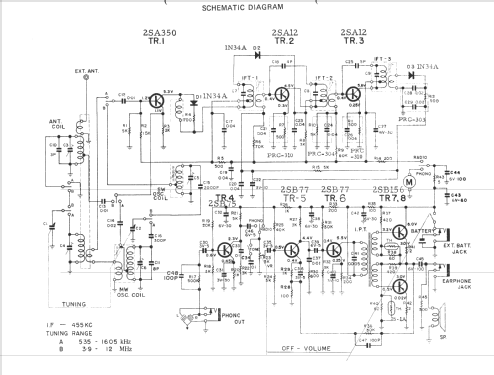

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
