BXL-403

BXL-403; Sharp; Osaka (ID = 771686) Radio

BXL-403; Sharp; Osaka (ID = 771687) Radio
BXL-403; Sharp; Osaka (ID = 1078640) Radio BXL-403; Sharp; Osaka (ID = 1078645) Radio
BXL-403; Sharp; Osaka (ID = 1078647) Radio BXL-403; Sharp; Osaka (ID = 1078648) Radio
Use red slider bar for more.
BXL-403; Sharp; Osaka (ID = 1078640) Radio
Sharp; Osaka: BXL-403 [Radio] ID = 1078640 595x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model BXL-403, Sharp; Osaka:

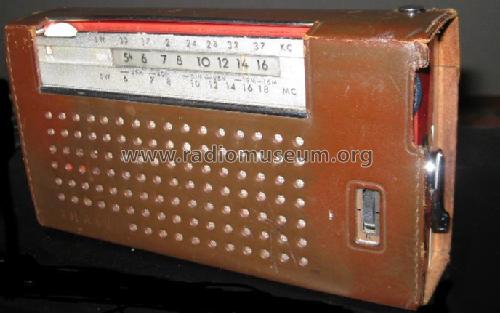

mit Ledertasche

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA352 2SA350 2SA12 2SA12 2SB75 2SB75 2SB156 2SB156
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BXL-403 - Sharp; Osaka
Notes Portable radio. SW band 6-18 Mhz.
Collectors' prices
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) -- Schematic

Model page created by Keith Staines. See "Data change" for further contributors.
