Calypso BXH-16L

Calypso BXH-16L; Sharp; Osaka (ID = 1253945) Radio Calypso BXH-16L; Sharp; Osaka (ID = 1253946) Radio
Calypso BXH-16L; Sharp; Osaka (ID = 1253947) Radio
Use red slider bar for more.

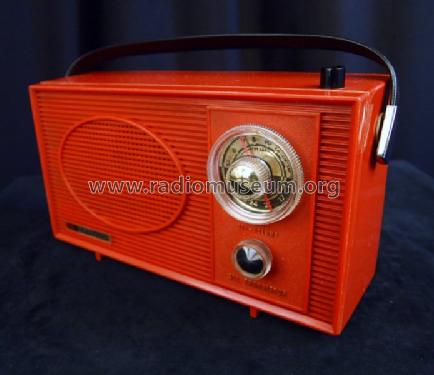

Calypso BXH-16L; Sharp; Osaka (ID = 1253945) Radio
Sharp; Osaka: Calypso BXH-16L [Radio] ID = 1253945 695x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Calypso BXH-16L, Sharp; Osaka

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Calypso BXH-16L - Sharp; Osaka
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9 x 5 x 4 inch / 229 x 127 x 102 mm
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data - - Data from my own collection

Model page created by Peter Kinnaird. See "Data change" for further contributors.
