CP-31

Sharp; Osaka

  • Year
  • 1970 ?
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 290491
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 25 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: CP-31 - Sharp; Osaka
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 360 x 590 x 290 mm / 14.2 x 23.2 x 11.4 inch
  • Notes

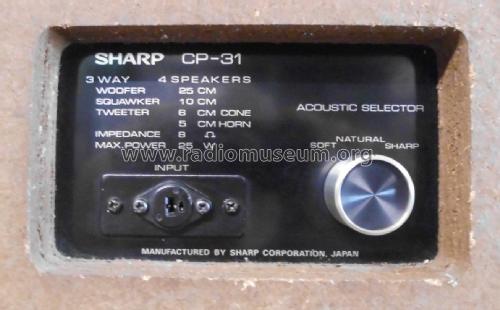

  • Sharp CP-31

    3 Weg - Bassreflex - Lautsprecherbox mit 4 Lautsprechern. Tieftonlautsprecher ø 250 mm mit konkaver Textilsicke, Mitteltonlautsprecher ø 100 mm, 1 Hochtonlautsprecher  ø 60 mm und ein Horn-Hochtöner. Trennfrequenz 1.200 und 6.500 Hz, Frequenzbereich 45 - 20.000 Hz, Belastbarkeit 25 Watt (M.P.O.), Wirkungsgrad 100 dB/W, Impedanz 8 Ω, Echtholzfurnier, Lautsprechergrill aus Holz, abschraubbar.

  • Net weight (2.2 lb = 1 kg)
  • 15.8 kg / 34 lb 12.8 oz (34.802 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Michael Lienhop. See "Data change" for further contributors.
