Digital DJ DRW-V2
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1997
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232486
-
- alternative name: Hayakawa Electric Co.Ltd.

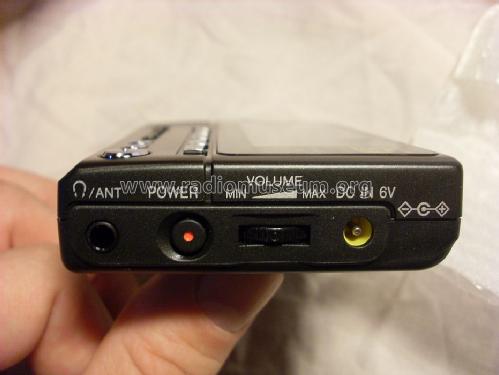

Foto parte delantera de la radio
foto para trasera de la radio
foto de la caja y manual original
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 1 .5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.2 cm = 0.9 inch
- Power out
- 0.045 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital DJ DRW-V2 - Sharp; Osaka
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 114.5 x 67 x 19.7 mm / 4.5 x 2.6 x 0.8 inch
- Notes
-
AM/FM radio + digital data receiver, earphones also act as the radio ariel. data service was available in usa by subscripion at 49 usd per month. also has i fair quality internal speaker.
- Net weight (2.2 lb = 1 kg)
- 0.117 kg / 0 lb 4.1 oz (0.258 lb)
- Price in first year of sale
- 199.00 USD
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Stephen Higgins. See "Data change" for further contributors.
