Dual Conversion Superheterodyne FV-610GB
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1983
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 280894
-
- alternative name: Hayakawa Electric Co.Ltd.

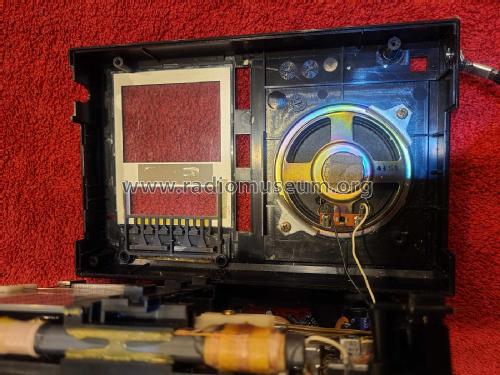

This is a picture of my radio
- Number of Transistors
- 14
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Batteries / addl. power jack / AA: 5 x 1,5 & for clock LR44: 2 x 1,5 / 7,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Dual Conversion Superheterodyne FV-610GB - Sharp; Osaka
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 135 x 45 mm / 8.3 x 5.3 x 1.8 inch
- Notes
-
Covers 7 shortwave bands (49 - 13m) in 500 kHz segments, analog readout and frequency counter, clock/timer.
Clock/timer microprocessor operates on 2 x LR44, radio supplied in various cabinet colors and with velvet pouch.
See also Sharp model FV-610GG.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Price in first year of sale
- 248.00 DM
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
