• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85096

• • alternative name: Hayakawa Electric Co.Ltd.

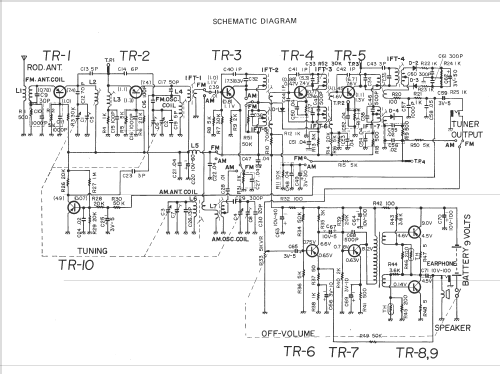

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.2 W (unknown quality)

• from Radiomuseum.org
• Model: FX-502 - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 120 x 95 x 40 mm / 4.7 x 3.7 x 1.6 inch

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 10.00 $

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.

• Other Models

• Here you find 1328 models, 1200 with images and 515 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sharp; Osaka
