FY-178L (Japan 302)

FY-178L ; Sharp; Osaka (ID = 1174858) Radio FY-178L ; Sharp; Osaka (ID = 1174869) Radio
FY-178L ; Sharp; Osaka (ID = 1174871) Radio FY-178L ; Sharp; Osaka (ID = 1174872) Radio
FY-178L ; Sharp; Osaka (ID = 1174873) Radio FY-178L ; Sharp; Osaka (ID = 1174874) Radio
FY-178L ; Sharp; Osaka (ID = 1224166) Radio FY-178L ; Sharp; Osaka (ID = 1224167) Radio
FY-178L ; Sharp; Osaka (ID = 1224168) Radio FY-178L ; Sharp; Osaka (ID = 2353372) Radio
Use red slider bar for more.
FY-178L ; Sharp; Osaka (ID = 1174858) Radio
Sharp; Osaka: FY-178L [Radio] ID = 1174858 448x336
Select picture or schematic to display from thumbnails on the right and click for download.
For model FY-178L (Japan 302), Sharp; Osaka

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FY-178L - Sharp; Osaka
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 190 x 125 x 56 mm / 7.5 x 4.9 x 2.2 inch
Notes

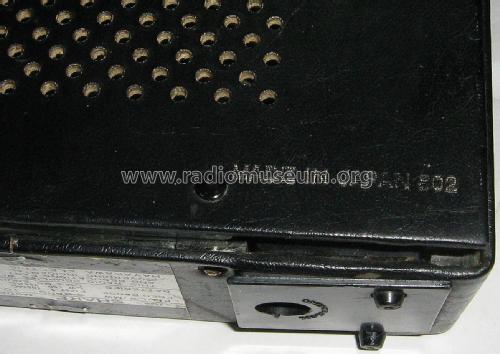

Made in Japan 302

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Stephen Higgins. See "Data change" for further contributors.
