• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166510

• • alternative name: Hayakawa Electric Co.Ltd.

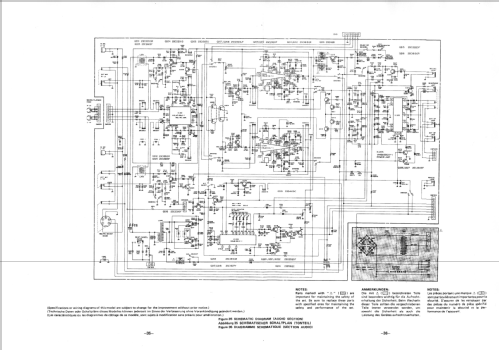

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110 - 120; 220 - 240 / 8 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

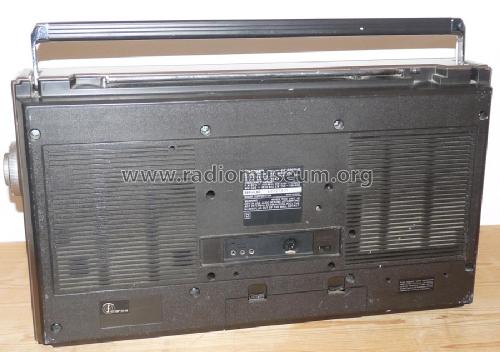

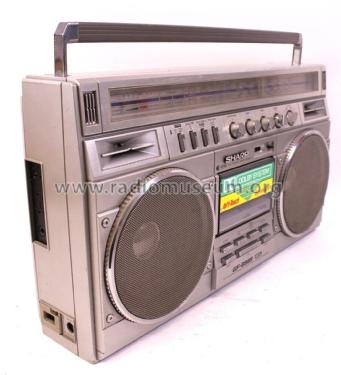

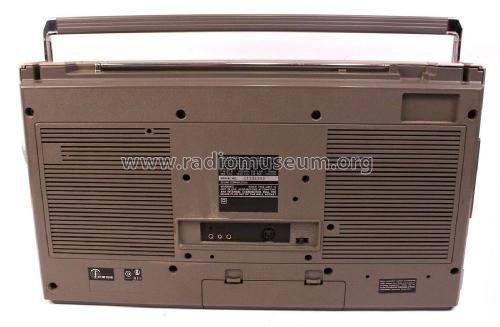

• Model: GF-8989HB - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 530 x 290 x 110 mm / 20.9 x 11.4 x 4.3 inch

• Notes
• Stereo-Radiorekorder, 2 eingebaute Mikrofone, ext. Mikrofon Eingang rechts/ links, LED Level Indicator.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
