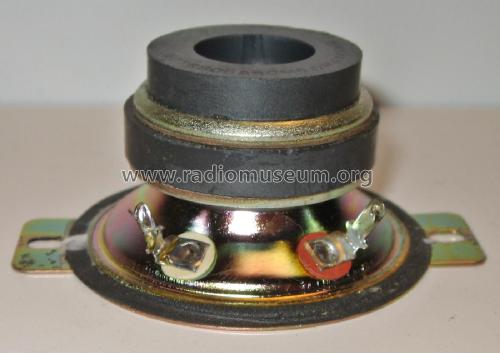

Hochton-Lautsprecher 50TBB06A

Sharp; Osaka

  • Year
  • 1995 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 261023
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Hochton-Lautsprecher 50TBB06A - Sharp; Osaka
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 75 x 57 x 33 mm / 3 x 2.2 x 1.3 inch
  • Notes
  • Hochton-Lautsprecher; Impedanz: 6 Ω, max. Belastbarkeit: 63 Watt.

  • Net weight (2.2 lb = 1 kg)
  • 0.107 kg / 0 lb 3.8 oz (0.236 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
