Lautsprecherchassis 1107P-55A
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1990 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 284103
-
- alternative name: Hayakawa Electric Co.Ltd.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

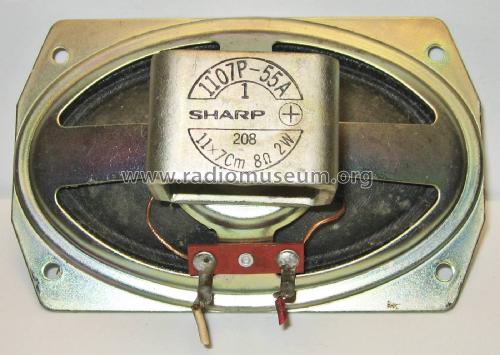

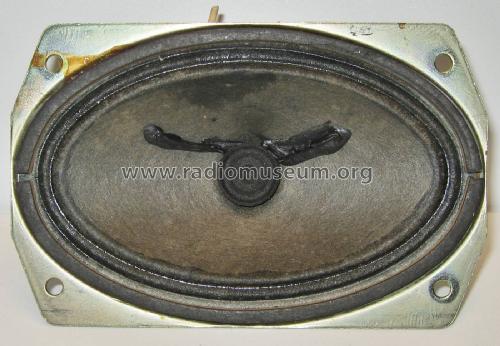

- Model: Lautsprecherchassis 1107P-55A - Sharp; Osaka
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 110 x 70 x 45 mm / 4.3 x 2.8 x 1.8 inch
- Notes
-
Ovales Breitband-Lautsprecherchassis; Impedanz: 8 Ω; Korb: offen, Stahlblech mit 4 Befestigungslöchern.
- Net weight (2.2 lb = 1 kg)
- 0.147 kg / 0 lb 5.2 oz (0.324 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
