Mini Component System CD-S200H (BK)

Sharp; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1994 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 323673
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Various materials
  • from Radiomuseum.org

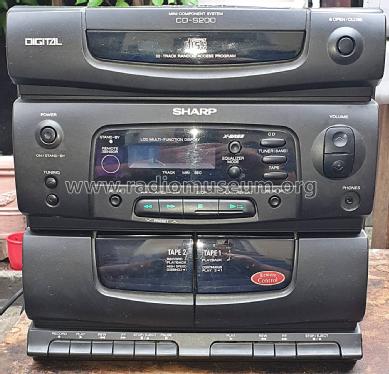

  • Model: Mini Component System CD-S200H - Sharp; Osaka
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 270 x 280 x 255 mm / 10.6 x 11 x 10 inch
  • Notes

  • Mini-Stereoanlage Sharp CD-S200H mit AM/FM-Radio, Doppel-Kassettendeck und CD-Player.
    MW-Empfang über externe Loop-Antenne, 75-Ohm-IEC-Anschluss für UKW-Antenne.
    Eingebauer UKW-Tuner: ENV-17294G1 (Panasonic/Matsushita).
    Leistungsaufnahme: 80 Watt.

    Made in Malaysia.

    Halbleiterliste nicht vollständig.

  • Net weight (2.2 lb = 1 kg)
  • 4.513 kg / 9 lb 15 oz (9.941 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
