Multi Band Deluxe FV 1800

• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1969 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84842

• • alternative name: Hayakawa Electric Co.Ltd.

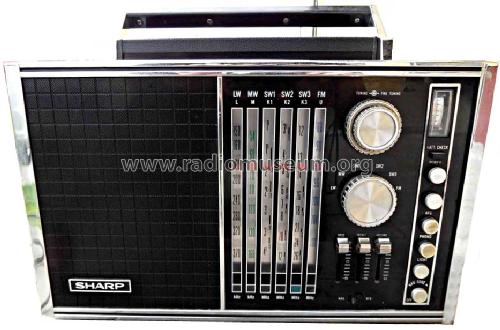

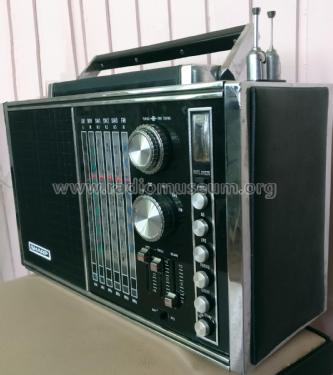

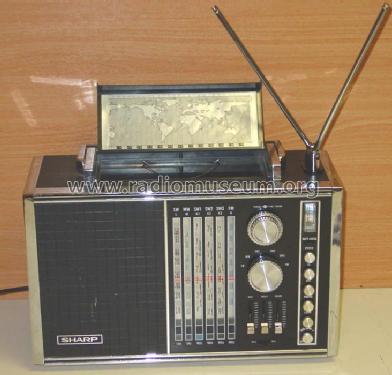

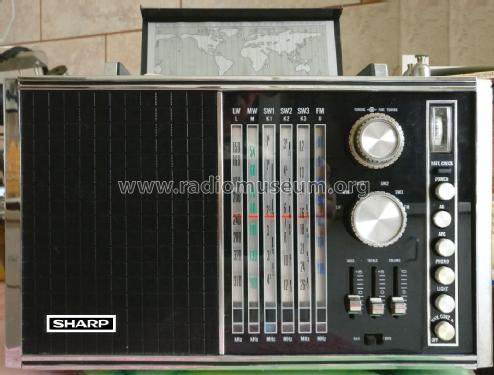

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

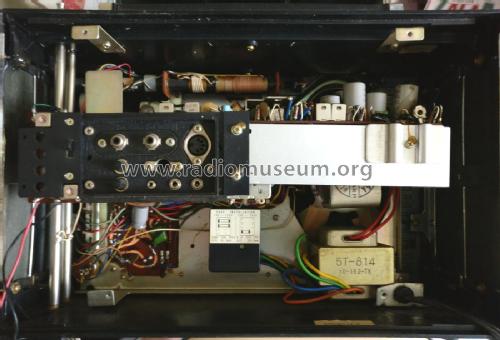

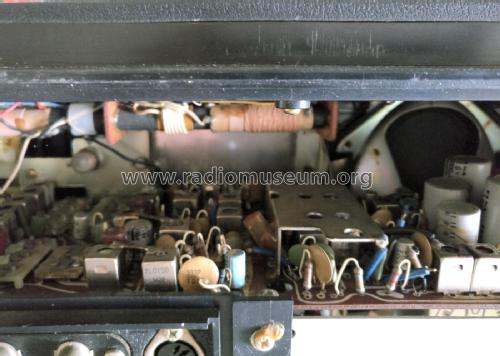

• Number of Transistors
• 17

• Semiconductors
• 2SK19 2SC535 2SC461 2SA234 2SA12 2SC458 2SB75 2SB370 2SC830 1S85 1N34A

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 100-120; 200-240 / UM1: 8 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Multi Band Deluxe FV 1800 - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 230 x 135 mm / 13.8 x 9.1 x 5.3 inch

• Notes

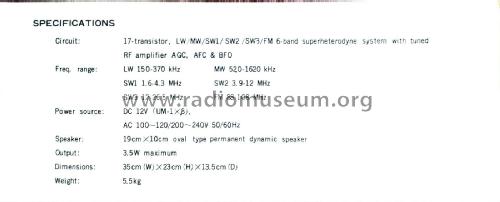

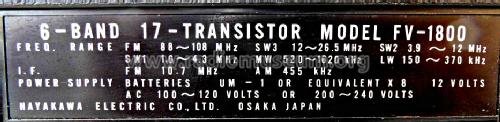

• 6-Band World-Receiver; Bands: LW 150-370 kHz; MW 520-1620 kHz; SW1: 1,6-4,3 MHz; SW2: 3-12 MHz; SW3: 12-26,5 MHz; FM 88-108 MHz; 2 Aerials. S-meter and BFO

  Solid state devices listed once per type, some diodes are not recorded.

  See also Sharp model FV-1800 A.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 448.00 DM
