• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 125640

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Line / Batteries (any type) / 110-240 ; 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

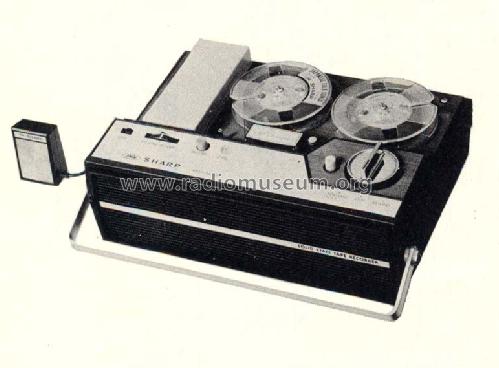

• Model: RDX-303A - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Nur an 120 Volt, 60 Hz zu betreiben.

• Mentioned in
• Orioginal Sharp Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
