• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 221036

• • alternative name: Hayakawa Electric Co.Ltd.

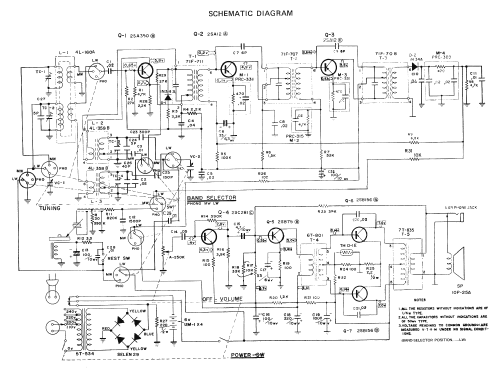

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Batteries (any type) / 110; 200; 220; 240/ 4x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RP-660L - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Plattenspieler mit 3 Geschwindigkeiten 33 1/2, 45 und 78 Umdrehungen.

• Mentioned in
• Sharp Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
