• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1973

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 221555

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Auto Ratio AR-953 - Sharp; Osaka

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 160 x 44 x 130 mm / 6.3 x 1.7 x 5.1 inch

• Notes
• 2 Band Stereo Autoradio, 2x 5 Watt Musikleistung, 5 Tasten 2x AM und 3x FM.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Mentioned in

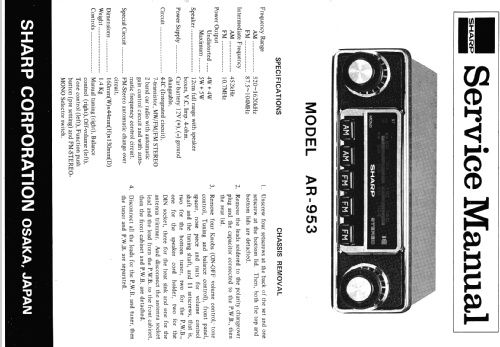

• Sharp Service Unterlagen

• Literature/Schematics (1)
• Funk-Technik (FT) (20/1973, S. 762 / Neuvorstellung, Messe Berlin)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
