• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1988 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 211032

• • alternative name: Hayakawa Electric Co.Ltd.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120; 9; 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

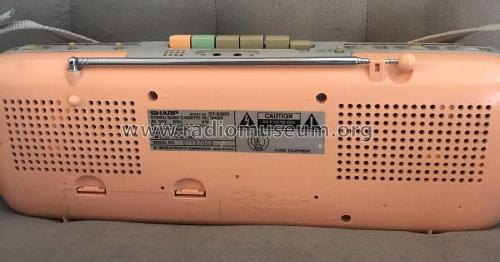

• Model: Stereo Radio Cassette Recorder QT-50 - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 15.5 x 5.5 x 3 inch / 394 x 140 x 76 mm

• Notes
• Sharp 2 Band Stereo Radio Cassette Recorder.
  Frequency Range: FM 87.6 - 108MHz, AM 526.5 - 1606.5kHz.
  Power Consumption 9 watts.
  Color: peach

• Net weight (2.2 lb = 1 kg)
• 4 lb 0 oz (4 lb) / 1.816 kg

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
