The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z

The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016672) Radio The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016673) Radio
The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016674) Radio The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016675) Radio
The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016676) Radio The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016677) Radio
The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 2051983) Radio The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 2051985) Radio
The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 2051986) Radio The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 2051988) Radio
Use red slider bar for more.
The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z; Sharp; Osaka (ID = 1016672) Radio
Sharp; Osaka: The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z [Radio] ID = 1016672 791x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z, Sharp; Osaka:
Ebay xiaosan777168 110706694850

Country:  Japan
Manufacturer / Brand:  Sharp; Osaka
alternative name

Hayakawa Electric Co.Ltd.
Year: 1984 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 52:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player

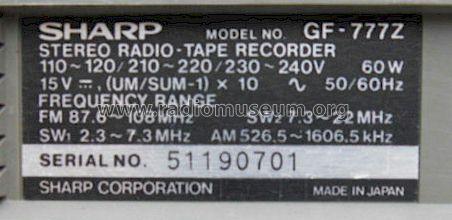

Power type and voltage Line / Batteries (any type) / 110-120; 210-240 / 15; 10 x 1,5 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: The Searcher 4 Band Stereo Radio Cassette Recorder GF-777 Z - Sharp; Osaka
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 752 x 379 x 166 mm / 29.6 x 14.9 x 6.5 inch

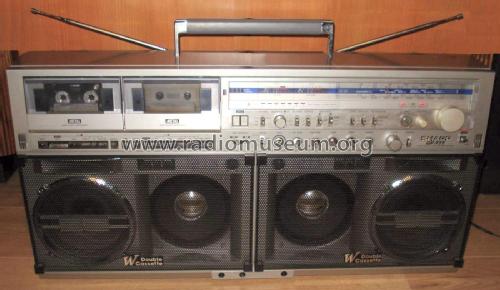

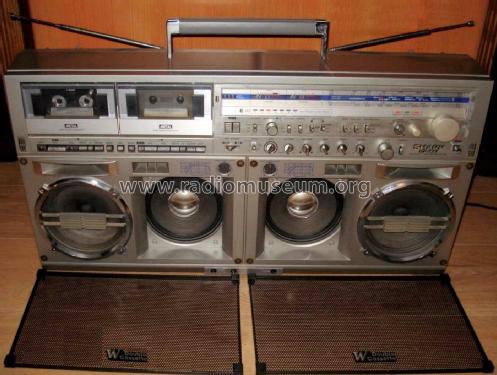

Notes Sharp GF-777Z 4 Band Stereo Radio Cassette Recorder, Ghettoblaster-Boombox;
Multi-amp, Super Woofer, Double Cassette Deck, "90 W PMPO", 3 way 6 speaker boxes,

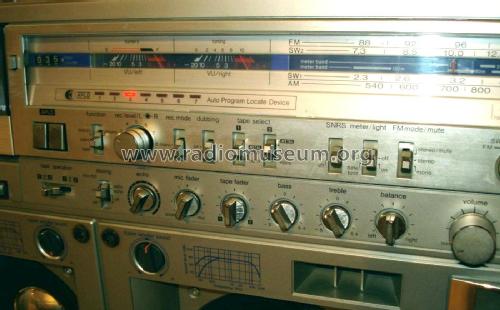

AM: 525 kHz - 1605 kHz,
SW1: 2.3 MHz - 7.3 MHz,
SW2: 7.3 MHz - 22 MHz,
FM: 87.6 MHz - 108 MHz, metal tape bias, 60 W power consumption.
Compare Sharp GF-777 model types:
GF-777E
GF-777Z
GF-777ZR (Russia)
GF-777H
Net weight (2.2 lb = 1 kg) 12.2 kg / 26 lb 14 oz (26.872 lb)
