• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116577

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 54

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s). / Ø 16 cm = 6.3 inch

• Power out
• 50 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

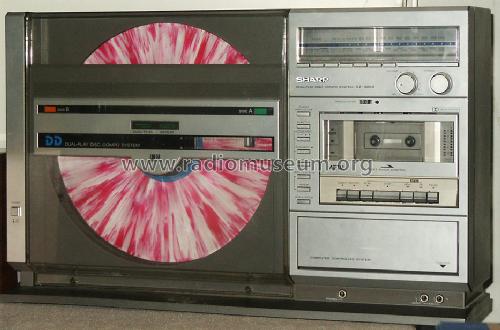

• Model: Dual Play Disc Combo System VZ-3000 - Sharp; Osaka

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 597 x 378 x 170 mm / 23.5 x 14.9 x 6.7 inch

• Notes

• Sharp VZ-3000H, VZ-3000HB, Dual-Play Disc Compo System;
  Wesentlicher Unterschied zum VZ-3000 ist der zusätzliche LW Bereich, 17 IC's, mit 2 Tonarm-Plattenspieler und Kassettenrecorder, Bandzählwerk, Metal Cass., Dolby NR, 2 x 25 W Sinus, Typ H in Silber, Typ HB in Braun/Metalic, zwei Lautsprecherboxen im Lieferumfang.

  For more details about the Sharp VZ-Series see here.

• Net weight (2.2 lb = 1 kg)
• 14.6 kg / 32 lb 2.5 oz (32.159 lb)

• Mentioned in
• -- Original-techn. papers. (Sharp Video- & Audiogeräte (D) 82/83)

• Literature/Schematics (1)
• Funkschau (3/1982, S. 71 - 73 / Beschreibung (techn. Neuheit, Doppel-Plattenspieler))

• Author
• Model page created by Wilfried Winter. See "Data change" for further contributors.

• Other Models

• Here you find 1341 models, 1212 with images and 519 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sharp; Osaka
