For model Linmark T-61, Linmark International Corp.; New York, NY:
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Linmark International Corp.; New York, NY
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2S52 2S53 2S53 2S24 2S56 2S56
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out
from Radiomuseum.org Model: Linmark T-61 - Linmark International Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.

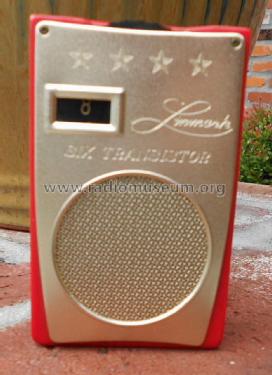

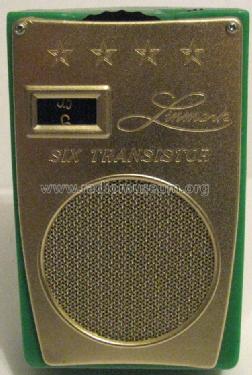

Notes The Shriro Model Linmark T-61 is a Battery operated vertical shirtpocket transistor.
Mentioned in Collector's Guide To TrR1 Bunis trans.94 (1996, page 146)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-59, Set 456, Folder 14)

Model page created by Egon Penker. See "Data change" for further contributors.
