Unidyne III 545

Unidyne III 545; Shure; Chicago, (ID = 2670058) Microphone/PU Unidyne III 545; Shure; Chicago, (ID = 2447631) Microphone/PU
Use red slider bar for more.
Unidyne III 545; Shure; Chicago, (ID = 2670058) Microphone/PU
Shure; Chicago,: Unidyne III 545 [Microphone/PU] ID = 2670058 1340x1738
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unidyne III 545, Shure; Chicago, Evanston, Niles (IL):
Picture from 1960 Shure catalog, page 8.

Country:  United States of America (USA)
Manufacturer / Brand:  Shure; Chicago, Evanston, Niles (IL)
Year: 1960–1965 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Unidyne III 545 - Shure; Chicago, Evanston,
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.81 x 1.94 x 1.94 inch / 148 x 49 x 49 mm
Notes

Shure Unidyne III 545

Dynamic unidirectional microphone for noisy acoustic environments.

Frequency response: 50 - 15,000 Hz

Net weight (2.2 lb = 1 kg) 0.6 lb (0 lb 9.6 oz) / 0.272 kg

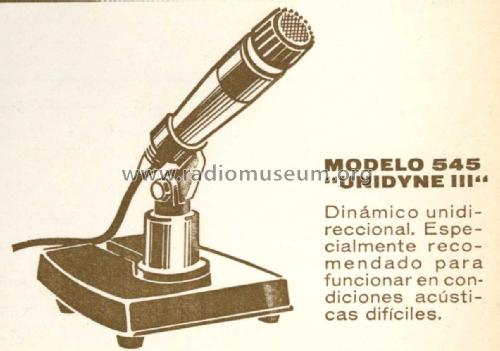

Mentioned in Anuario General Industría Electrica y de Radio 1965
Literature/Schematics (1) Funk-Technik (FT) (4/1963, S. 122 / Werbeanzeige)
Literature/Schematics (2) - - Manufacturers Literature (1960 Shure catalog, page 8)

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
