Stereo Cartridge M70B

Stereo Cartridge M70B; Shure; Chicago, (ID = 2488939) Microphone/PU Stereo Cartridge M70B; Shure; Chicago, (ID = 2488940) Microphone/PU

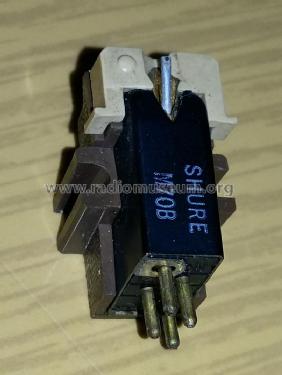

Stereo Cartridge M70B; Shure; Chicago, (ID = 2488941) Microphone/PU
Use red slider bar for more.
Stereo Cartridge M70B; Shure; Chicago, (ID = 2488939) Microphone/PU
Shure; Chicago,: Stereo Cartridge M70B [Microphone/PU] ID = 2488939 528x782
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cartridge M70B, Shure; Chicago, Evanston, Niles (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Shure; Chicago, Evanston, Niles (IL)
Year: 1980 ?? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cartridge M70B - Shure; Chicago, Evanston,
Material Modern plastics (no Bakelite or Catalin)
Shape Chassis only or for «building in»
Dimensions (WHD) 14 x 14 x 26 mm / 0.6 x 0.6 x 1 inch
Notes

Stereo cartridge.

Net weight (2.2 lb = 1 kg) 0.006 kg / 0 lb 0.2 oz (0.013 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
