• Year
  • 1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99644

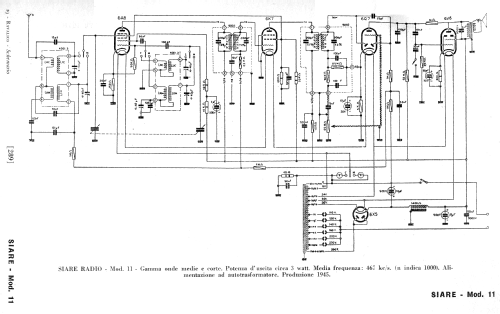

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 467 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 140; 160; 220; 270; 290 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 11 - SIARE -Crosley; Piacenza
  • Notes
  • Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

    Autotransformer: Chassis connected to the mains. We do not always state such cases - since often the uploader does not know.
