• Country
• Italy

• Manufacturer / Brand
• SIARE (-Crosley); Piacenza

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30722

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6K6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 411 [I serie] - SIARE -Crosley; Piacenza

• Shape
• Tablemodel, low profile (big size).

• Notes

• Ingresso per giradischi. Regolatore di tono. Il cambio da radio a fono è separato dal cambio gamma.

  La legenda dello schema allegato indica 4 gamme d'onda, ma i commutatori di banda d'onda hanno solo 3 posizioni.

  Vedi anche modello 411 II serie e modello 411 con 4 gamme d'onda.

• Source of data

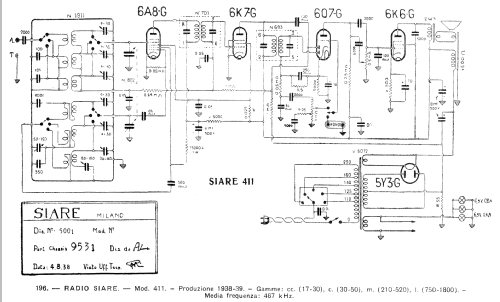

• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)

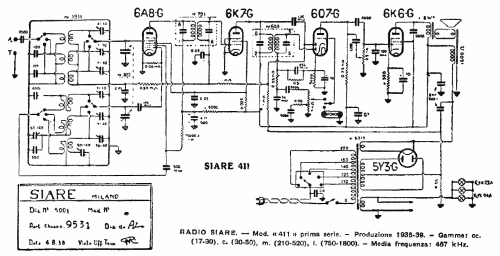

• -- Schematic (Notiziario di Radio Industria 1 gennaio 1946)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
