Emerson 613C

Emerson 613C; SICART; Milano (ID = 971949) Radio
Emerson 613C; SICART; Milano (ID = 1471839) Radio Emerson 613C; SICART; Milano (ID = 1471841) Radio
Emerson 613C; SICART; Milano (ID = 1471843) Radio Emerson 613C; SICART; Milano (ID = 1471845) Radio
Emerson 613C; SICART; Milano (ID = 1471848) Radio Emerson 613C; SICART; Milano (ID = 1471850) Radio
Use red slider bar for more.

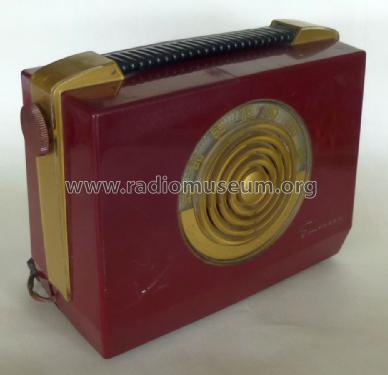

Emerson 613C; SICART; Milano (ID = 1471839) Radio
SICART; Milano: Emerson 613C [Radio] ID = 1471839 933x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Emerson 613C, SICART; Milano

Country:  Italy
Manufacturer / Brand:  SICART; Milano
Brand

Emerson-Sicart
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Line / Batteries (any type) / AC 110; 125; 150; 160; 220; Batt. 1,5 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Emerson 613C - SICART; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 175 x 95 mm / 8.5 x 6.9 x 3.7 inch
Notes

Italian version of US Emerson 613 (made by SICART). MW-SW band selector, multi-voltage AC selector, and Battery Charge selector, are features of this version.

Literature/Schematics (1) Il Manuale del Radiomeccanico (Vol.3°)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
