• Country
• Italy

• Manufacturer / Brand
• SICART; Milano

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195506

• • Brand: Emerson-Sicart

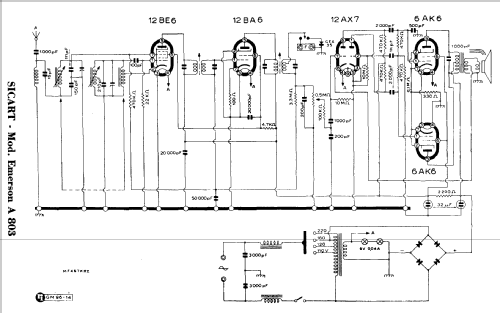

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AX7 6AK6 6AK6

• Number of Transistors

• Semiconductors
• GEX35

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Emerson A803 - SICART; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 145 x 123 mm / 10.6 x 5.7 x 4.8 inch

• Notes
• Altoparlante magnetodinamico ellittico 90 x 165 mm. Sul pannello posteriore e sullo schema all'interno la denominazione del produttore è la Emerson americana (Emerson Radio & Phonograph Corp.; New York); scala, pannello posteriore e tagliando di collaudo sono in italiano.

  Maker name shown on rear wall and on the inner schematic is American Emerson; tuning dial, rear wall text and inspection tag are in Italian.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 29,000.00 ITL

• Mentioned in
• Catalogo ANIE (1956-57)

• Literature/Schematics (1)
• Il Manuale del Radiomeccanico (Vol.3°)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
