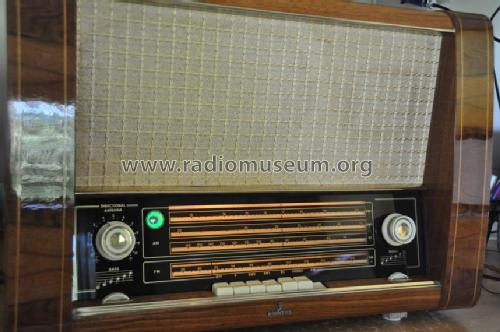

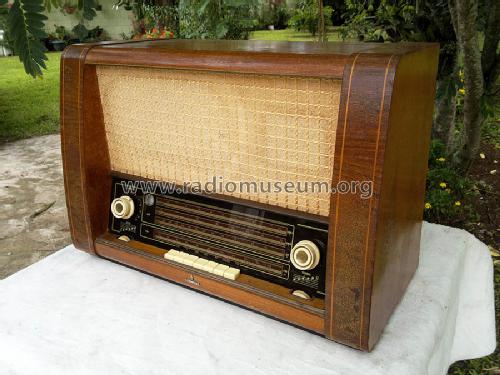

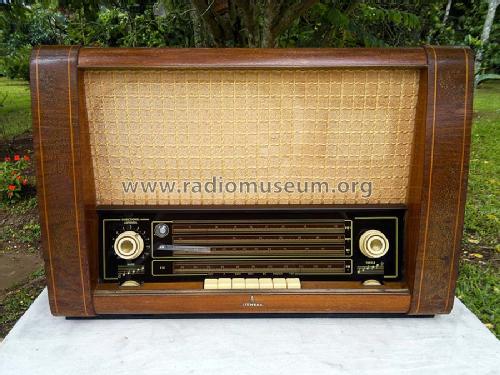

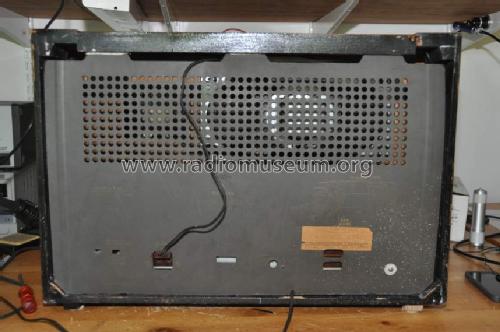

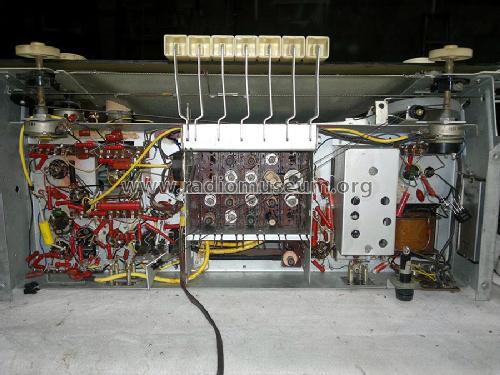

Luxus-Super 54 1135W Export

Luxus-Super 54 1135W; Siemens; D S.& (ID = 740406) Radio
Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703626) Radio Luxus-Super 54 1135W; Siemens; D S.& (ID = 1696363) Radio
Luxus-Super 54 1135W; Siemens; D S.& (ID = 1696364) Radio Luxus-Super 54 1135W; Siemens; D S.& (ID = 1696365) Radio
Luxus-Super 54 1135W; Siemens; D S.& (ID = 1696366) Radio Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703624) Radio
Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703625) Radio Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703629) Radio
Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703632) Radio Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703633) Radio
Use red slider bar for more.
Luxus-Super 54 1135W; Siemens; D S.& (ID = 1703626) Radio
Siemens; D S.&: Luxus-Super 54 1135W [Radio] ID = 1703626 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Luxus-Super 54 1135W Export, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner

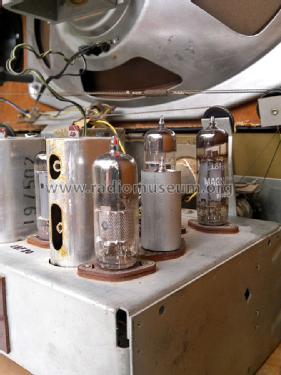

Valves / Tubes 10: 6BX6 6AB4 6AJ8 6N8 6CD7 or 6AF7 6N8 6AK8 6BX6 6BQ5 6BQ5
Main principle Superheterodyne (common); Export model
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt

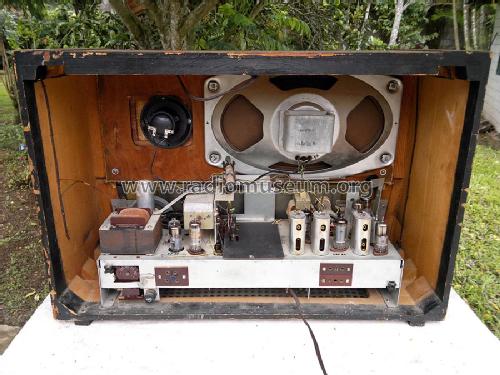

Loudspeaker 2 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Luxus-Super 54 1135W [Export] - Siemens; D S.& Halske / S.

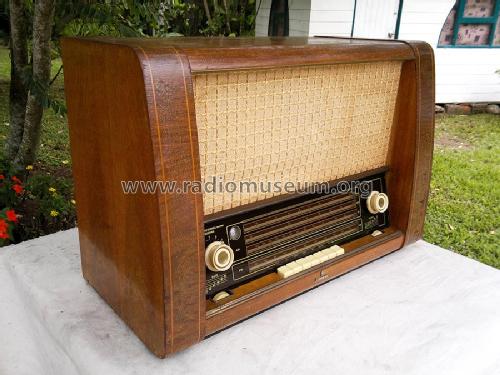

Material Wooden case

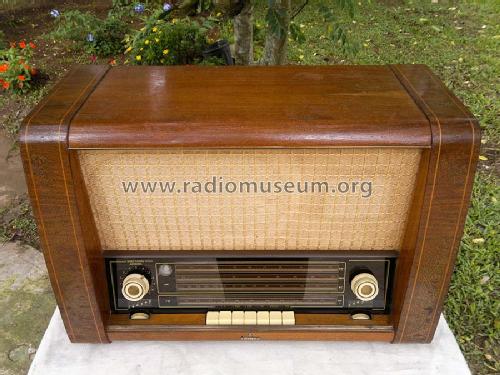

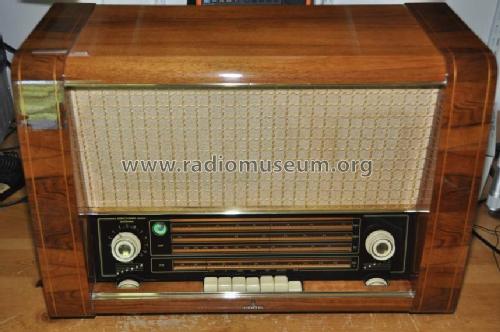

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 622 x 425 x 287 mm / 24.5 x 16.7 x 11.3 inch
Notes

The export model Siemens Luxus-Super 54 1135W features FM, 2x SW and BC bands.

Coverage:
FM 87.5...108 MHz
SW 1 12.5...20 m
SW 2 20...50 m
BC 520...1650 kHz

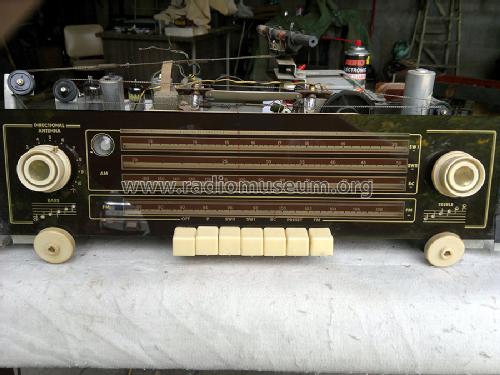

Directional ferrite rod antenna for BC. BC preset station. Push-pull output stage.

See also the domestic variant Luxus-Super 54 1135W with different tube complement and wave ranges.

Source of data -- Schematic
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Servicer)

Model page created by Egon Penker. See "Data change" for further contributors.
