12GW

12GW; Siemens (ID = 2264834) Radio

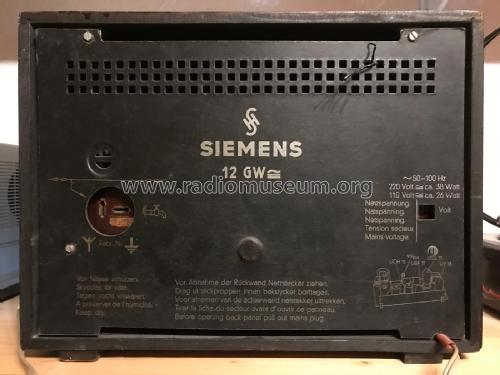

12GW; Siemens (ID = 2357086) Radio 12GW; Siemens (ID = 2357087) Radio
12GW; Siemens (ID = 286753) Radio 12GW; Siemens (ID = 2357088) Radio
12GW; Siemens (ID = 2357089) Radio 12GW; Siemens (ID = 2357090) Radio
12GW; Siemens (ID = 2357091) Radio 12GW; Siemens (ID = 2357092) Radio
12GW; Siemens (ID = 2357093) Radio 12GW; Siemens (ID = 2357139) Radio
Use red slider bar for more.
12GW; Siemens (ID = 2357086) Radio
Siemens: 12GW [Radio] ID = 2357086 1400x1044
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12GW, Siemens Elektrizitätserzeugnisse AG, Zürich

Country:  Switzerland
Manufacturer / Brand:  Siemens Elektrizitätserzeugnisse AG, Zürich
alternative name

Siemens EAG; Schweiz
Year: 1943/1944 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11
Main principle Superheterodyne (common)
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 12GW - Siemens
Material Wooden case
Dimensions (WHD) 370 x 290 x 220 mm / 14.6 x 11.4 x 8.7 inch
Notes Import aus Deutschland (siehe dort),Vertrieb in CH durch Albiswerke.
Net weight (2.2 lb = 1 kg) 6.1 kg / 13 lb 7 oz (13.436 lb)
Price in first year of sale 360.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Siemens Elektrizitätserzeugnisse AG, Zürich
Here you find 28 models, 15 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
