25GLK

25GLK; Siemens; D S.& (ID = 13372) Radio

25GLK; Siemens; D S.& (ID = 13373) Radio

25GLK; Siemens; D S.& (ID = 6143) Radio
25GLK; Siemens; D S.& (ID = 283329) Radio 25GLK; Siemens; D S.& (ID = 62507) Radio
25GLK; Siemens; D S.& (ID = 62506) Radio 25GLK; Siemens; D S.& (ID = 62505) Radio
25GLK; Siemens; D S.& (ID = 1506487) Radio 25GLK; Siemens; D S.& (ID = 1594691) Radio
Use red slider bar for more.
25GLK; Siemens; D S.& (ID = 283329) Radio
Siemens; D S.&: 25GLK [Radio] ID = 283329 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 25GLK, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: REN1814 RENS1823d
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 25GLK - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 320 x 365 x 170 mm / 12.6 x 14.4 x 6.7 inch
Notes

Parallelgerät zum Telefunken Wiking 125GLK.
Parallelgerät zum AEG Geadux 112GLK.

Price in first year of sale 153.00 RM !
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

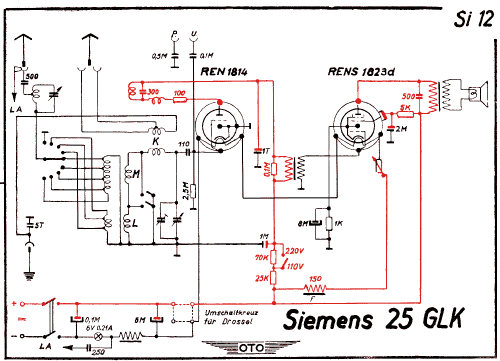

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
