Super 448U

Super 448U; Siemens-Austria WSW; (ID = 82354) Radio

Super 448U; Siemens-Austria WSW; (ID = 82355) Radio

Super 448U; Siemens-Austria WSW; (ID = 345909) Radio

Super 448U; Siemens-Austria WSW; (ID = 631066) Radio

Super 448U; Siemens-Austria WSW; (ID = 345910) Radio
Super 448U; Siemens-Austria WSW; (ID = 1716949) Radio Super 448U; Siemens-Austria WSW; (ID = 27778) Radio

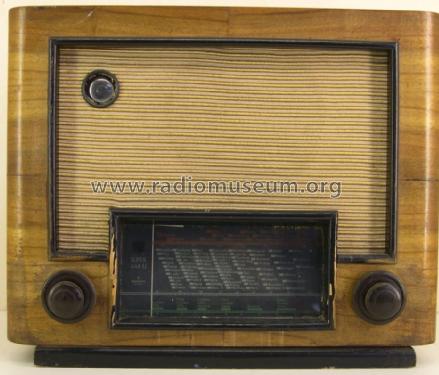

Super 448U; Siemens-Austria WSW; (ID = 1716947) Radio Super 448U; Siemens-Austria WSW; (ID = 1716950) Radio
Super 448U; Siemens-Austria WSW; (ID = 1716951) Radio
Use red slider bar for more.
Super 448U; Siemens-Austria WSW; (ID = 1716949) Radio
Siemens-Austria WSW;: Super 448U [Radio] ID = 1716949 933x865
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 448U, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH4 UCH4 UBL1 UY1N UM4
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110*220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Super 448U - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 330 x 220 mm / 16.1 x 13 x 8.7 inch
Notes plus Sonderausf. 125/245V Allstrom (ZF=468?) [RM4812]
Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Price in first year of sale 1,180.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Radiotechnik, Die, Wien (RT 42) (4811B)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Siemens-Austria (WSW); Wien
Here you find 196 models, 173 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
