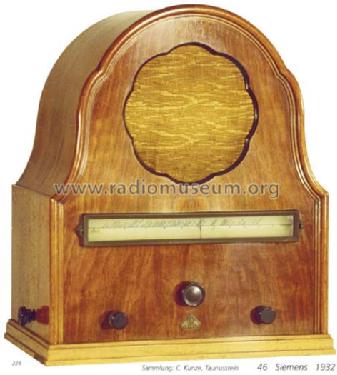

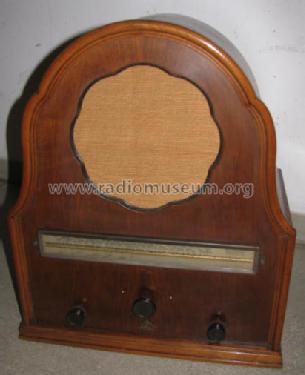

46GL; Siemens; D S.& (ID = 943) Radio
Siemens; D S.&: 46GL [Radio] ID = 943 473x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 46GL, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner

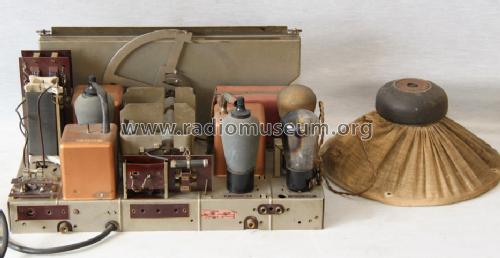

Valves / Tubes 4: RENS1819 RENS1819 REN1821 RENS1823d
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: 46GL - Siemens; D S.& Halske / S.
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 440 x 525 x 268 mm / 17.3 x 20.7 x 10.6 inch
Notes Exponentialröhren

Siehe auch 46G ohne Lautsprecher.
Paralleltype zum Telefunken 343GL (T343GL) (L343G) in anderem Gehäuse.

Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 322.00 RM !
Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb

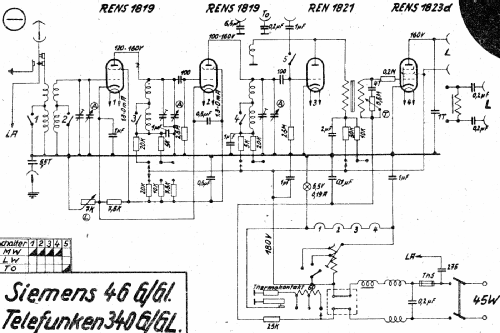

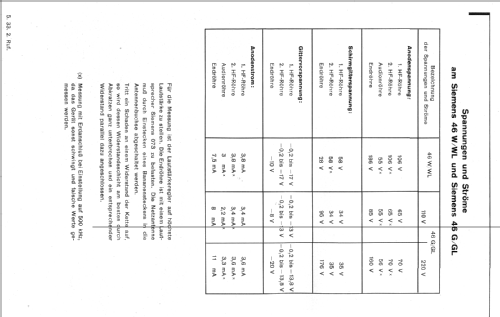

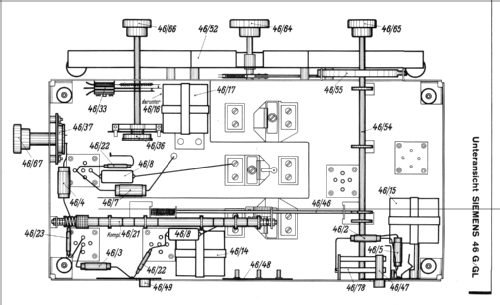

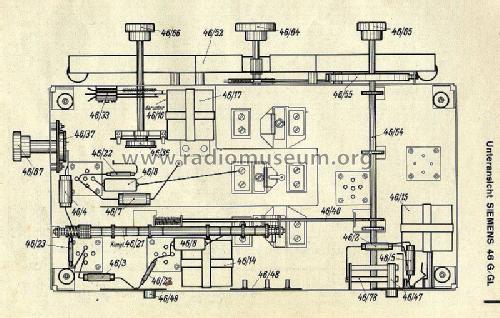

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funk Bastler (Funkbastler 1933, Heft 20, Seite 317)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
