• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1959/1960

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 22527

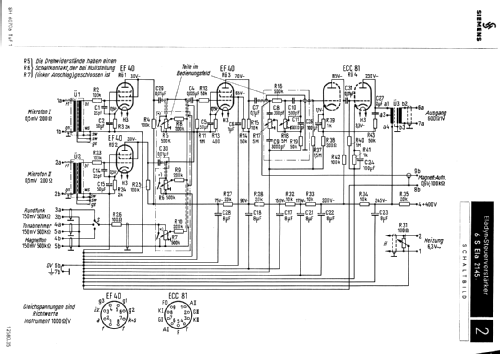

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF40 EF40 EF40 ECC81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 6,3 & 300 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

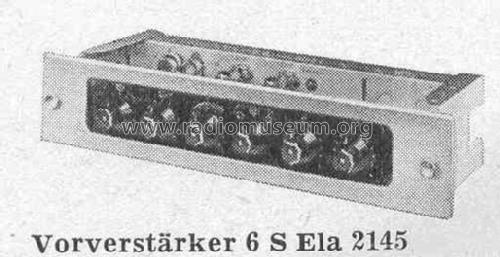

• Model: Eladyn-Steuerverstärker - Vorverstärker 6S Ela2145 - Siemens & Halske, -Schuckert

• Dimensions (WHD)
• 520 x 100 x 180 mm / 20.5 x 3.9 x 7.1 inch

• Notes

• Vorverstärker (Gestellverstärker); Frequenzbereich 40-15000 Hz; 3 Eingänge, 1 Ausgang. Speisung aus nachgeschaltetem Eladyn-Verstärker.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 490.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
