Alpha RG223

Alpha RG223; Siemens; D S.& (ID = 760313) Radio Alpha RG223; Siemens; D S.& (ID = 407892) Radio
Alpha RG223; Siemens; D S.& (ID = 760314) Radio Alpha RG223; Siemens; D S.& (ID = 760315) Radio
Alpha RG223; Siemens; D S.& (ID = 760316) Radio Alpha RG223; Siemens; D S.& (ID = 760317) Radio
Alpha RG223; Siemens; D S.& (ID = 760318) Radio Alpha RG223; Siemens; D S.& (ID = 793700) Radio
Alpha RG223; Siemens; D S.& (ID = 797474) Radio Alpha RG223; Siemens; D S.& (ID = 797475) Radio
Use red slider bar for more.
Alpha RG223; Siemens; D S.& (ID = 760313) Radio
Siemens; D S.&: Alpha RG223 [Radio] ID = 760313 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alpha RG223, Siemens; D (S.& Halske / S. Electrogeräte):
Picture from an ended eBay auction, created by haps1957

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1977/1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Alpha RG223 - Siemens; D S.& Halske / S.
Material Modern plastics (no Bakelite or Catalin)

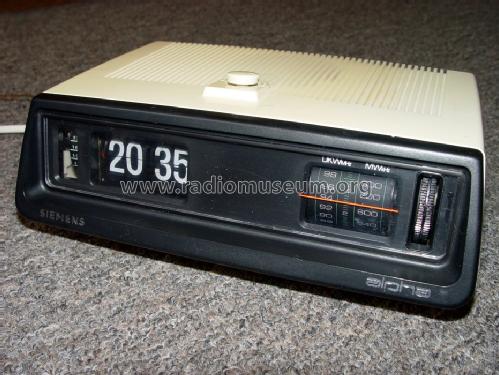

Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 250 x 90 x 172 mm / 9.8 x 3.5 x 6.8 inch
Notes Klappzahlen-Uhr. Gehäusefarben: weiß, rot oder gelb.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data Handbuch VDRG 1977/1978

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
