Amperemeter

Amperemeter ; Siemens; D S.& (ID = 1018140) Equipment
Use red slider bar for more.
Amperemeter ; Siemens; D S.& (ID = 1018140) Equipment

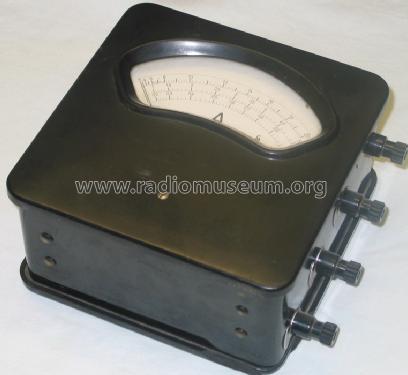

Siemens; D S.&: Amperemeter [Equipment] ID = 1018140 763x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amperemeter, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1950 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Amperemeter - Siemens; D S.& Halske / S.
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 225 x 115 x 200 mm / 8.9 x 4.5 x 7.9 inch
Notes Dreheisenmesswerk. 3 Eingänge für 1A, 5A und 20 Ampere. Waagerechte Nennlage.
Net weight (2.2 lb = 1 kg) 2.350 kg / 5 lb 2.8 oz (5.176 lb)
Source of data - - Data from my own collection

Model page created by Otto Frosinn. See "Data change" for further contributors.
