Bildmeister electronic FT404

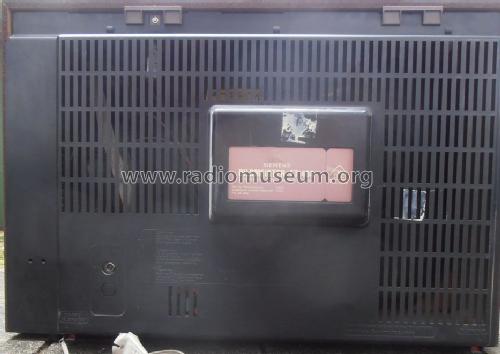

Bildmeister electronic FT404; Siemens; D S.& (ID = 1693647) Television Bildmeister electronic FT404; Siemens; D S.& (ID = 1693643) Television
Bildmeister electronic FT404; Siemens; D S.& (ID = 1693638) Television Bildmeister electronic FT404; Siemens; D S.& (ID = 1693639) Television
Bildmeister electronic FT404; Siemens; D S.& (ID = 1693640) Television Bildmeister electronic FT404; Siemens; D S.& (ID = 1693651) Television
Use red slider bar for more.
Bildmeister electronic FT404; Siemens; D S.& (ID = 1693647) Television
Siemens; D S.&: Bildmeister electronic FT404 [Television] ID = 1693647 933x629
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bildmeister electronic FT404, Siemens; D (S.& Halske / S. Electrogeräte):
Eigenes Gerät

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1973 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A61-120W
Semiconductors (the count is only for transistors) Semiconductors present. TBA120 TDA440 SAS560 SAS570
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Bildmeister electronic FT404 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 706 x 481 x 395 mm / 27.8 x 18.9 x 15.6 inch
Notes

8 Sensortasten für Stationsspeicherung, Tuner mit Kapazitätsdiodenabstimmung, Schaltkreise u.A. TBA120S, TDA440, SAS560, SAS570. Horizontalablenkung mit zwei Thyristoren. Hersteller des Chassis = Blaupunkt, siehe Bilder.

Net weight (2.2 lb = 1 kg) 21.8 kg / 48 lb 0.3 oz (48.018 lb)

Model page created by Michael Salzgeber. See "Data change" for further contributors.
