Bildmeister Electronic FT 362

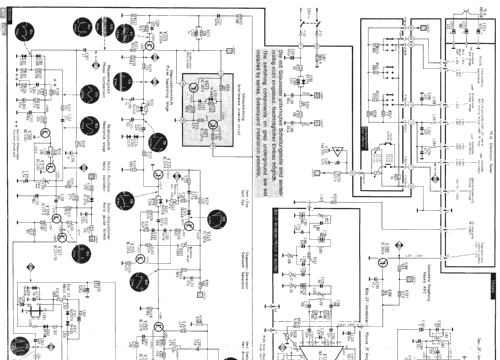

Bildmeister Electronic FT 362; Siemens; D S.& (ID = 610280) Television

Bildmeister Electronic FT 362; Siemens; D S.& (ID = 610281) Television

Bildmeister Electronic FT 362; Siemens; D S.& (ID = 610282) Television
Bildmeister Electronic FT 362; Siemens; D S.& (ID = 1339141) Television Bildmeister Electronic FT 362; Siemens; D S.& (ID = 445469) Television
Use red slider bar for more.
Bildmeister Electronic FT 362; Siemens; D S.& (ID = 1339141) Television
Siemens; D S.&: Bildmeister Electronic FT 362 [Television] ID = 1339141 600x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bildmeister Electronic FT 362, Siemens; D (S.& Halske / S. Electrogeräte):
aus siemenskatalog 1973

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1973/1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A61-120W
Semiconductors (the count is only for transistors) 24:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bildmeister Electronic FT 362 - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 704 x 488 x 391 mm / 27.7 x 19.2 x 15.4 inch
Notes 61 cm Tischgerät, 3 IC´s, 29 Dioden, 2 Thyristoren, Hochspannungskaskade, VHF/UHF-Tuner, Fernbedienung FZ 2155.
Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Mentioned in -- Original-techn. papers. (Weiler Angebot 1973/74)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
