Bildmeister III (3) FT336

Bildmeister III FT336; Siemens; D S.& (ID = 880952) Television Bildmeister III FT336; Siemens; D S.& (ID = 1893613) Television

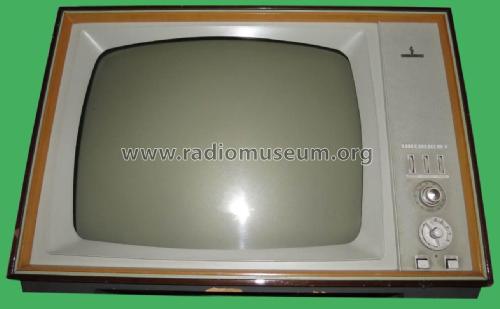

Bildmeister III FT336; Siemens; D S.& (ID = 1893614) Television Bildmeister III FT336; Siemens; D S.& (ID = 1893615) Television
Use red slider bar for more.
Bildmeister III FT336; Siemens; D S.& (ID = 880952) Television
Siemens; D S.&: Bildmeister III FT336 [Television] ID = 880952 933x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bildmeister III (3) FT336, Siemens; D (S.& Halske / S. Electrogeräte):
Siemens Fernsehgeräte-Katalog - Sammlung Funkhistorisches Archiv der GFGF e.V.

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: AW59-90
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bildmeister III FT336 - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 500 x 350 mm / 27.6 x 19.7 x 13.8 inch
Notes

VHF/UHF. Anschraubbare Beine gegen Mehrpreis (25,- DM).

Gehäusefarben Afrikanisch Birnbaum dunkel hochglanz, Nußbaum natur seidenglanz, Teak natur geölt.

Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Price in first year of sale 1'158.00 DM
Source of data Handbuch VDRG 1962/1963
Mentioned in Funk-Technik (FT) (9/1962, S. 305 / Kurzbeschreibung)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
