Box 6 S ELA 3792a

Box 6 S ELA 3792a; Siemens; D S.& (ID = 1601215) Speaker-P Box 6 S ELA 3792a; Siemens; D S.& (ID = 1601216) Speaker-P
Box 6 S ELA 3792a; Siemens; D S.& (ID = 1601217) Speaker-P Box 6 S ELA 3792a; Siemens; D S.& (ID = 1601219) Speaker-P
Box 6 S ELA 3792a; Siemens; D S.& (ID = 1601221) Speaker-P
Use red slider bar for more.
Box 6 S ELA 3792a; Siemens; D S.& (ID = 1601215) Speaker-P
Siemens; D S.&: Box 6 S ELA 3792a [Speaker-P] ID = 1601215 930x271
Select picture or schematic to display from thumbnails on the right and click for download.
For model Box 6 S ELA 3792a, Siemens; D (S.& Halske / S. Electrogeräte):
Sammlung

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1976 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed

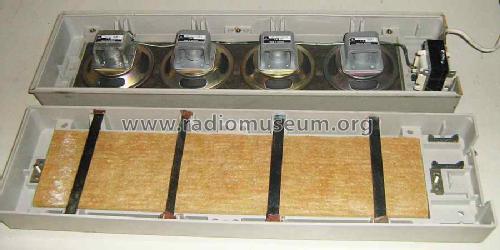

Loudspeaker 4 Loudspeakers / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Box 6 S ELA 3792a - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Console with any shape - in general
Dimensions (WHD) 150 x 540 x 100 mm / 5.9 x 21.3 x 3.9 inch
Notes

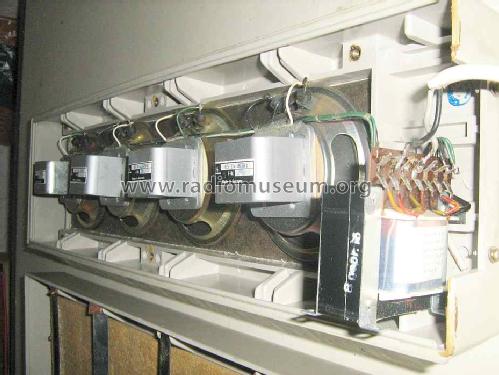

Box 6 S ELA  3792a, mit eingebautem Übertrager Verst.100V 1,4A  6 Watt, Lautsprecher   6 S Ela 3179b, Gehäuse Farbe Elfenbein.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
