C72392-A244-A1

C72392-A244-A1; Siemens; D S.& (ID = 234509) Ampl/Mixer C72392-A244-A1; Siemens; D S.& (ID = 234510) Ampl/Mixer
C72392-A244-A1; Siemens; D S.& (ID = 234511) Ampl/Mixer C72392-A244-A1; Siemens; D S.& (ID = 234512) Ampl/Mixer
C72392-A244-A1; Siemens; D S.& (ID = 234513) Ampl/Mixer
Use red slider bar for more.

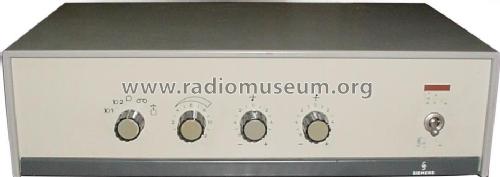

C72392-A244-A1; Siemens; D S.& (ID = 234509) Ampl/Mixer
Siemens; D S.&: C72392-A244-A1 [Ampl/Mixer] ID = 234509 933x332
Select picture or schematic to display from thumbnails on the right and click for download.
For model C72392-A244-A1, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1975 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 15 W (unknown quality)
from Radiomuseum.org Model: C72392-A244-A1 - Siemens; D S.& Halske / S.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 370 x 115 x 240 mm / 14.6 x 4.5 x 9.4 inch
Notes Mischverstärker mit Lautsprecheranschluss: 100 V/670 Ohm, Endstufe mit 2× 2N3055 bestückt.
Source of data - - Data from my own collection

Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
