Caramat RK15

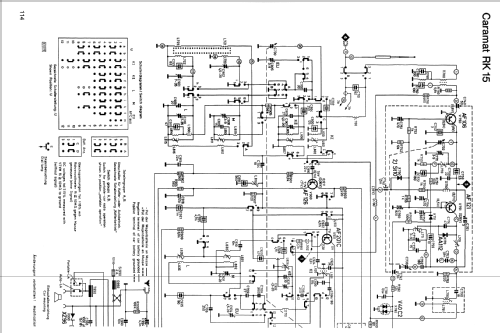

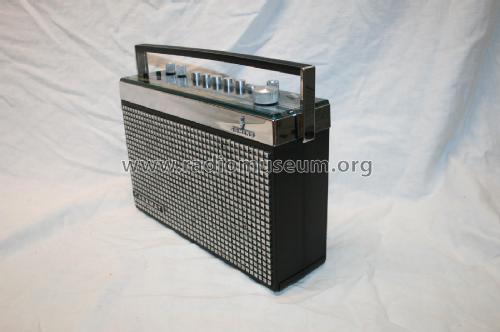

Caramat RK15; Siemens; D S.& (ID = 35807) Radio

Caramat RK15; Siemens; D S.& (ID = 35808) Radio

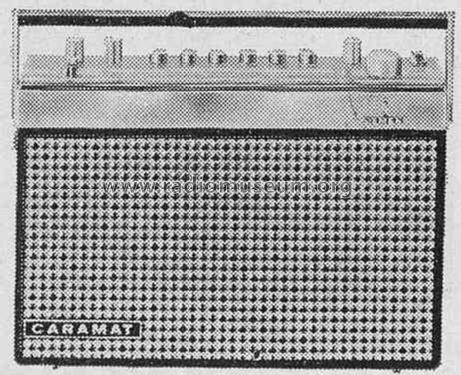

Caramat RK15; Siemens; D S.& (ID = 1304258) Radio Caramat RK15; Siemens; D S.& (ID = 441827) Radio
Caramat RK15; Siemens; D S.& (ID = 1304259) Radio
Use red slider bar for more.
Caramat RK15; Siemens; D S.& (ID = 1304258) Radio

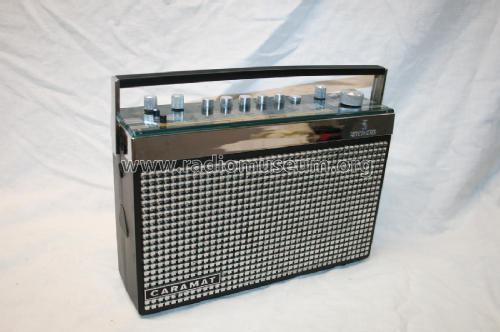

Siemens; D S.&: Caramat RK15 [Radio] ID = 1304258 933x891
Select picture or schematic to display from thumbnails on the right and click for download.
For model Caramat RK15, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF121 AF126 AF201 AF126 AF201 BC108 AC151 AC153 AC176
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Caramat RK15 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 281 x 193 x 79 mm / 11.1 x 7.6 x 3.1 inch
Notes Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung = 3 W. Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
