For model CHR-531, Siemens; D (S.& Halske / S. Electrogeräte):

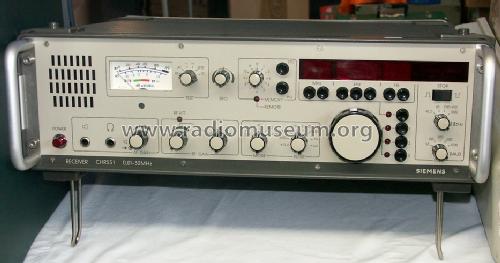

Aufnahme von der Ham Radio 2010

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1984 Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 73030/30 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: CHR-531 - Siemens; D S.& Halske / S.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 448 x 153 x 470 mm / 17.6 x 6 x 18.5 inch
Notes

Siemens Receiver CHR-531

  • All Wave Receiver
  • Covering 10 kHz - 30 MHz
  • 10 Hz tuning steps
  • Reception Modes
    • A1, A2
    • A3, A3J, A3A, A3H, A3B
    • F1, F4
  • Sensitivity < 0,1 uV A1, < 1 uV A3J
  • IF-Bandwidths: +/- 75 Hz, +/- 150 Hz, +/- 300 Hz, +/- 750 Hz, (+/- 1.5 kHz), +/- 3 kHz, +/- 6 kHz, +/- 5 kHz, + 3 kHz USB and - 3 kHz LSB
  • 12 Memory Channels
  • Outputs
    • for Teletypewriter
    • digitally coded frequency information
    • 12,5 and 30 kHz intermediate frequency
Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Source of data -- Original prospect or advert
