For model Club RK92, Siemens; D (S.& Halske / S. Electrogeräte):

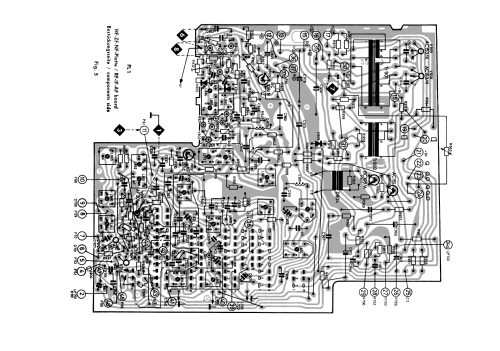

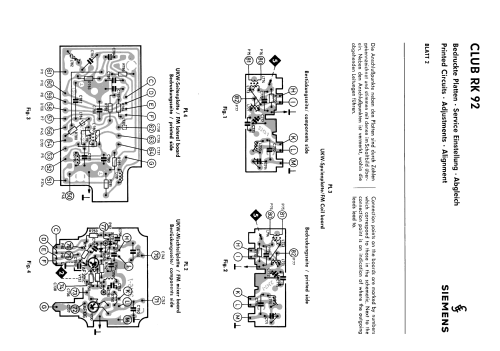

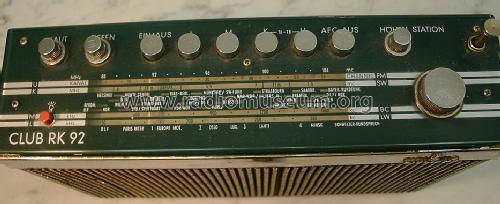

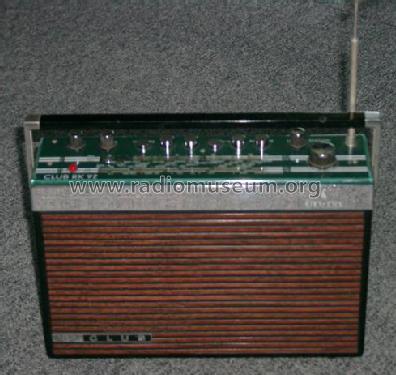

D Siemens 1966 Club RK 92 total

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: AF106 AF201 AF201 AF201 AF201 BC108 AC151 BC108 AC153 AC153 AC151 AD148
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Club RK92 - Siemens; D S.& Halske / S.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 180 x 80 mm / 11 x 7.1 x 3.1 inch
Notes Bei Betrieb über Autohalterung (6/12 V) NF-Ausgangsleistung = 4 W. Netzbetrieb über externe Stromversorgung möglich.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb
